Hardware - Plus4i8255
Name:	Plus4i8255
Category:	Various
Introduced:	2024-12-30
Manufactured by	SukkoPera

Plus4i8255 is an open-source Intel 8255 Interface for the Commodore 16, 116 and Plus/4.

The Intel 8255 is a general purpose programmable I/O device featuring 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation.

The board is basically a modernized and improved version of the 8255 Interface designed by Ferenc Garay and Dr. János Rohonczy and can be used for the same purposes.

Links
[ GitHub ] [ PCBWay ]

Hardware (owned by members)
Hardware	Country	Serial Number
SukkoPera	France	1
1 found.

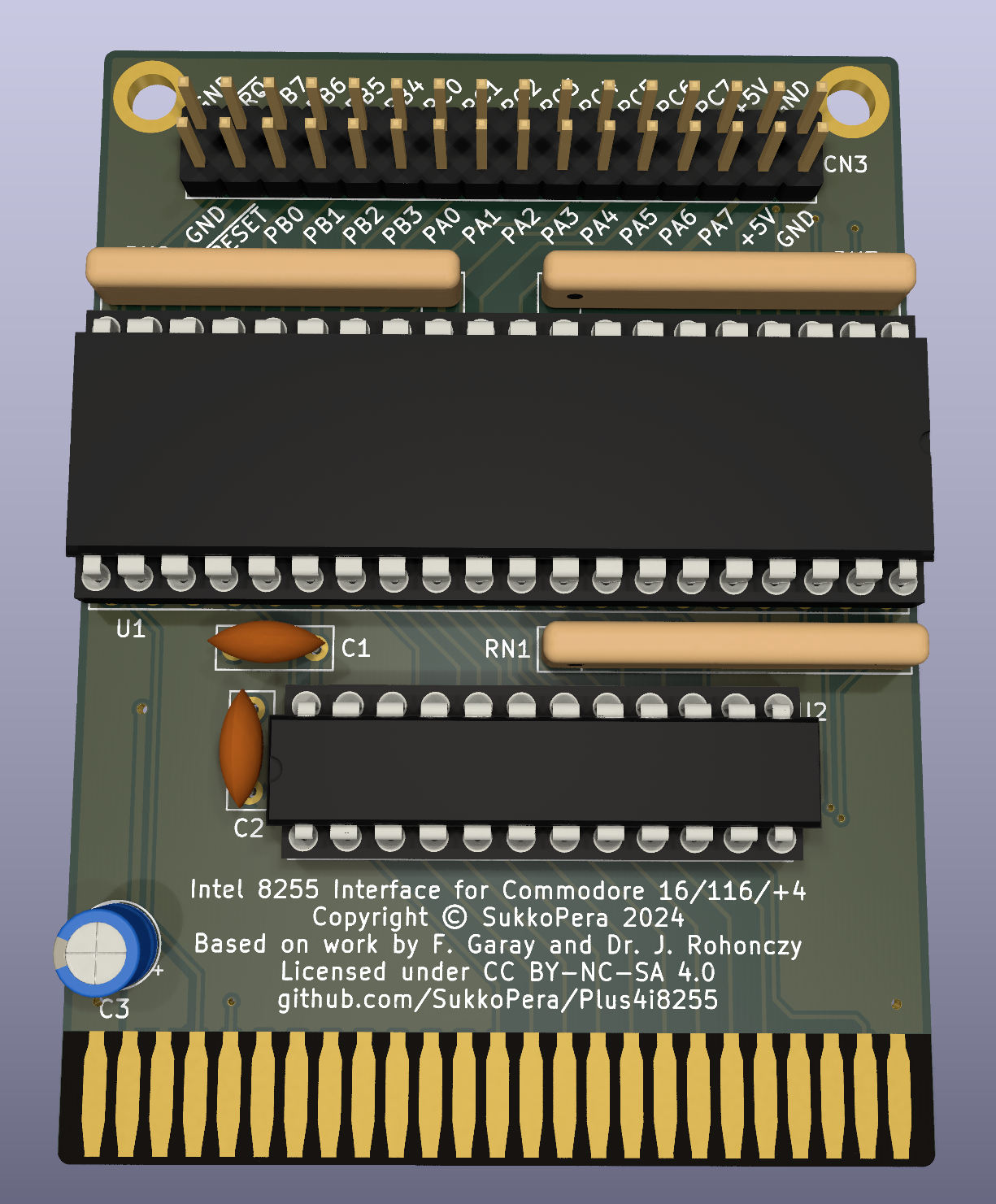

Top View

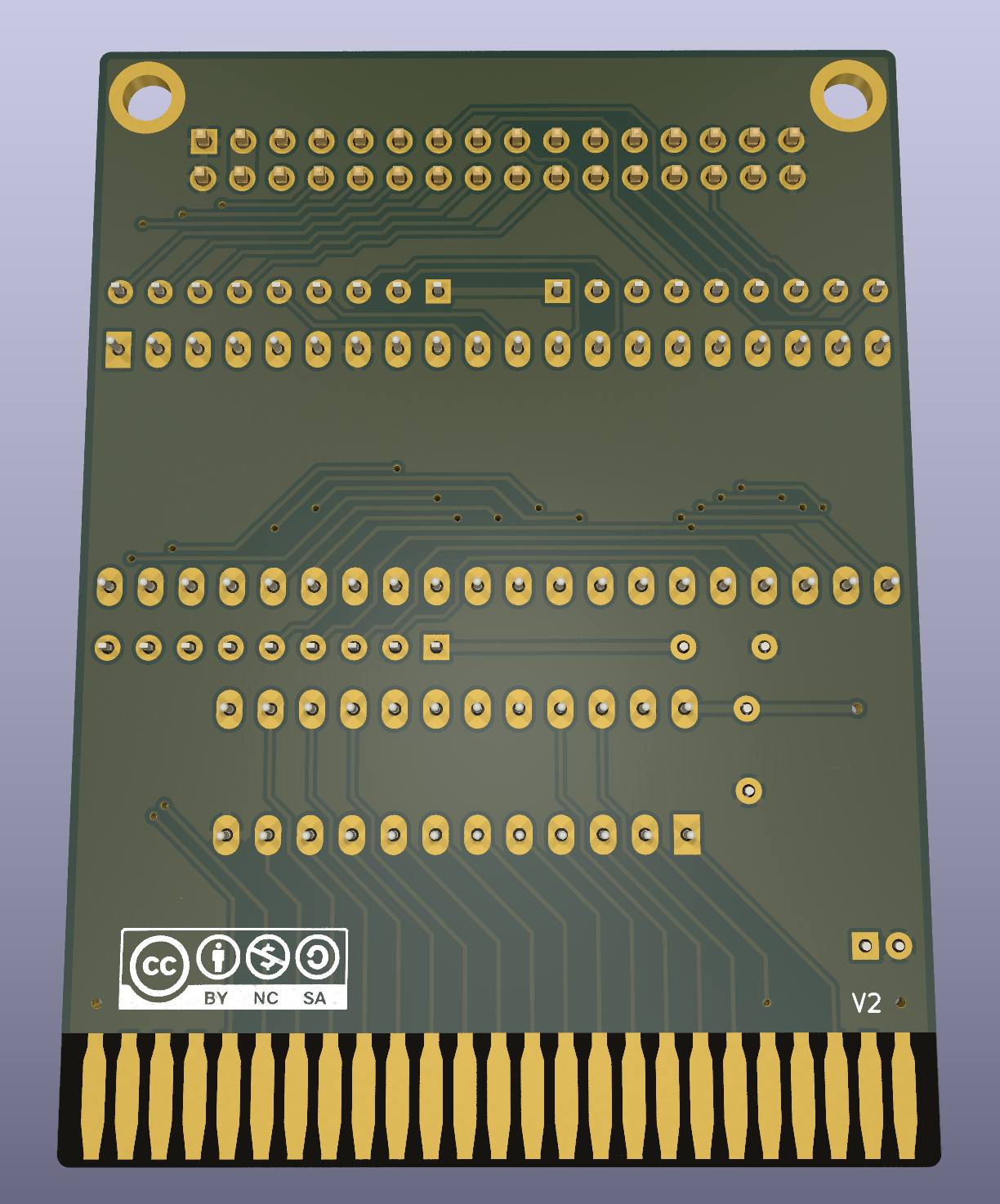

Bottom View
